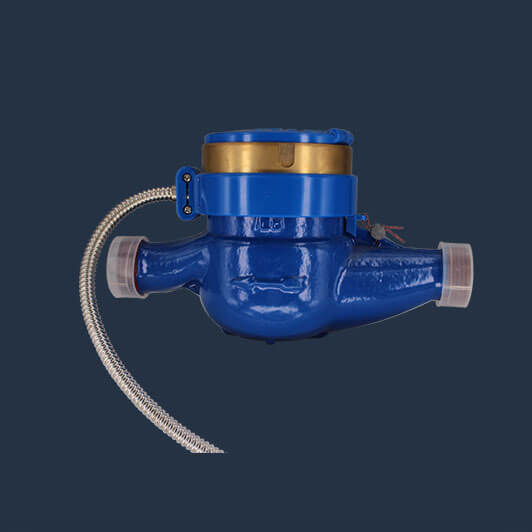

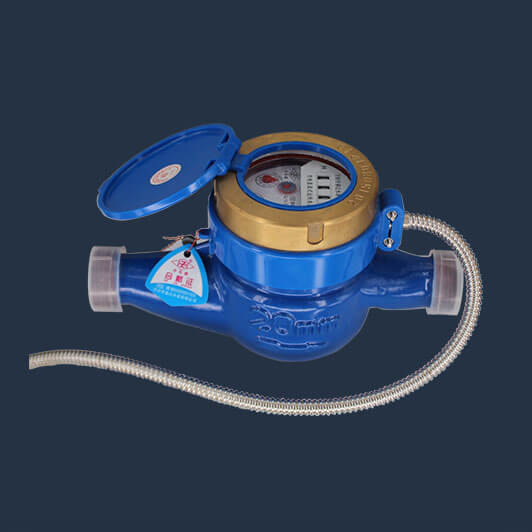

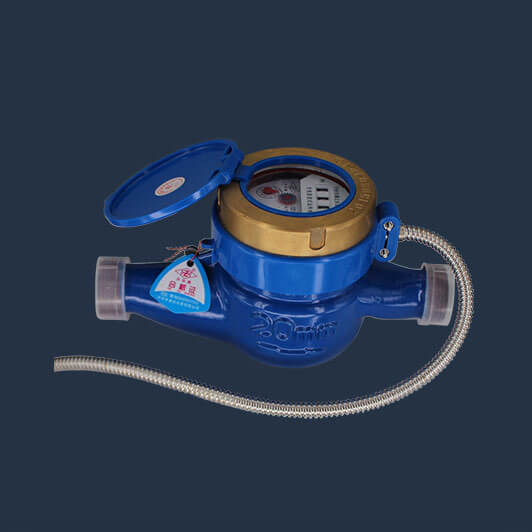

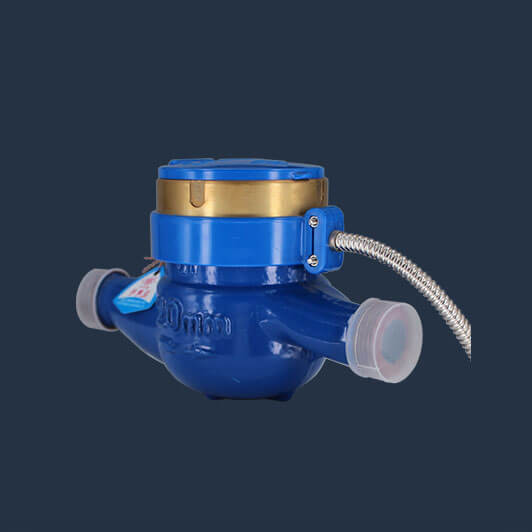

Wired Remote Water Meter

Using the new photoelectric direct reading coding technology, more accurate to read the mechanical position of the code data, there is no carry problem of character wheel 0 and 9. Using low-power design, no battery inside the meter, usually without power supply, only in the meter reading moment supply power, reading accuracy rate is 100%, is in the industry-leading level.

Wired remote water meter is composed of water meter, collector, concentrator and management software,Using photoelectric direct reading technology to read data.

Features

1. By encoding and decoding the number of rounds of the table "direct reading" out of the word on the digital position of the physical compiler;

2. Photoelectric direct reading module with automatic detection of each photoelectric component performance and reporting function;

3. The table has a unique identification code, ie the table address (factory number);

4. "0" power design, failure rate reduced, longer life;

5. Photoelectric direct reading module completely sealed in the counter, and water isolation, from outside water and moisture erosion;

6. Meet the "electronic remote meter" (CJ / T224-2012) standards;

7. The use of advanced data encoding and verification methods, communication reliability is high;

8. Compliant with EMC, ESD, EMI and other electronic products, electromagnetic compatibility aspects of technical requirements.

Supply Conditions:

  • Supply Size:DN15~DN200
  • Body Material: brass/iron
  • R: 80/100/160(optional)
  • Type: dry dial/wet dial
  • Max.work pressure: 1.0MPa
  • Pressure loss: ≤ 0.063mpa
  • Water temperature: T30/T90
  • Communication: M-BUS/RS485
  • Communication transmission rate:1200/2400/4800/9600bps
  • Communication protocol:CJ/T188,DL/T645-1997,MODBUS
  • Software payment: Supply for free

Communication modes

There are M-BUS and RS-485 communication modes for wired remote water meter.

RS-485 water meter

  • Work voltage: 6-14V
  • Standby current: ≤1.1mA
  • Work current: ≤5mA
  • Transmission distance: 1200M
  • Communication transmission rate: 1200bps-9600bps
  • Communication protocol
  • Protocol: DL/T645 CJ/T188 MODBUS
  • Work environment:Temperature: 0℃~+60℃ humidity: ≤95%RH

M-bus water meter

  • Work voltage: 24-42V
  • Standby current: ≤1.5mA, work current: ≤20mA
  • Transmission distance: 1200M
  • Communication transmission rate: 1200bps-9600bps
  • Communication protocol
  • Protocol: DL/T645 CJ/T188 MODBUS
  • Work environment:Temperature: 0℃~+60℃ humidity: ≤95%RH
