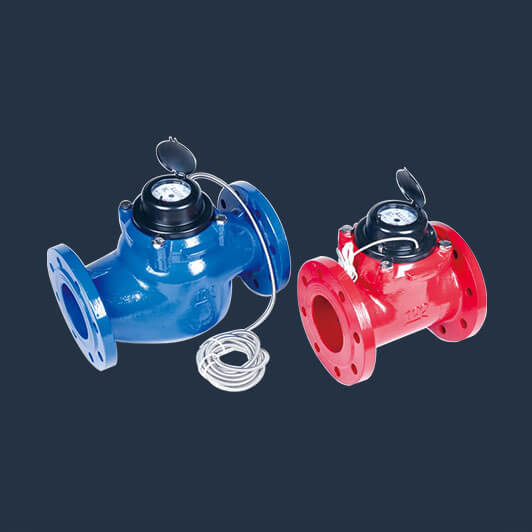

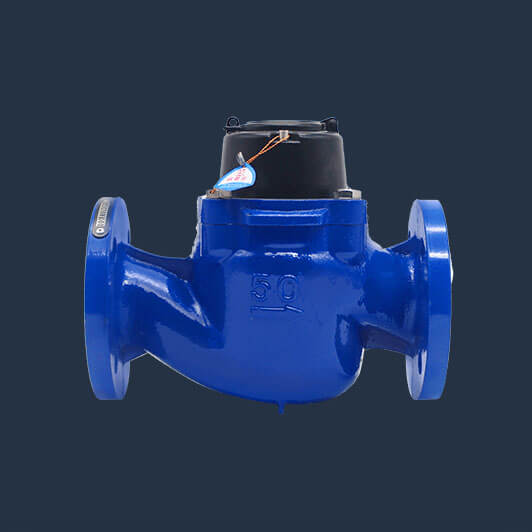

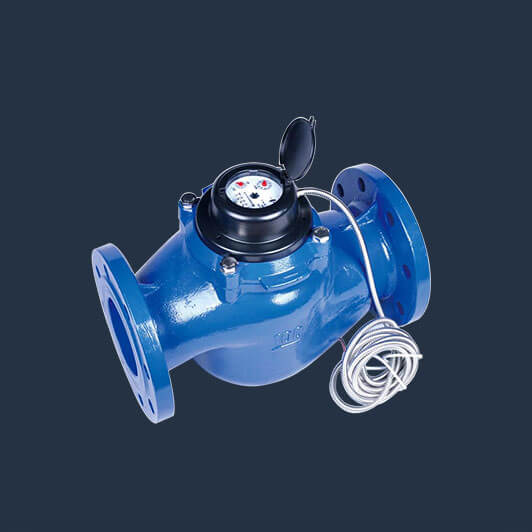

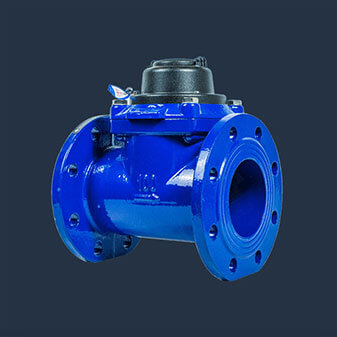

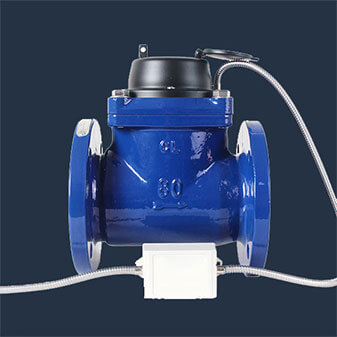

Bulk Wired Remote Water Meter
Remote measurement, sectional calibration, high measurement accuracy, low voltage alarm function. No magnetic measurement, no strong magnetic field attack problem.
Characteristic
Remote measurement, sectional calibration, high measurement accuracy, low voltage alarm function.
No magnetic measurement, no strong magnetic field attack problem.
Freeze consumption records regularly and upload historical data.
Ultra low power consumption (static power consumption less than 10uA) design, high definition LCD display.
Epoxy resin potting, can work in water, easy to install, horizontal or vertical installation.
Parameters
Qm=Minimum flow，Qt=Transitional flow，Qp=Permanent flow，Qs=Overload flow，R=Qp/Qm| Model NO. | DN(mm) | flow range | Qp | Qs | Qt | Qm | Mini Reading | Max Reading |
| Qp/Qm | m3/h | m3 | ||||||
| WS-40 | 40 | 50 | 40 | 50 | 1.28 | 0.8 | 0.0001 | 999999 |
| 200 | 1.25 | 0.2 | 0.0001 | 999999 | ||||
| WS-50 | 50 | 50 | 40 | 50 | 1.28 | 0.8 | 0.0001 | 999999 |
| 200 | 1.25 | 0.2 | 0.0001 | 999999 | ||||
| WS-80 | 80 | 50 | 63 | 80 | 2 | 1.26 | 0.0001 | 999999 |
| 200 | 2 | 0.32 | 0.0001 | 999999 | ||||
| WS-100 | 100 | 50 | 100 | 125 | 3.2 | 2 | 0.0001 | 999999 |
| 200 | 3.12 | 0.5 | 0.0001 | 999999 | ||||
| WS-150 | 150 | 50 | 250 | 312 | 8 | 5 | 0.0001 | 999999 |
| 200 | 7.88 | 1.25 | 0.0001 | 999999 | ||||
| WS-200 | 200 | 50 | 400 | 500 | 12.8 | 8 | 0.0001 | 999999 |
| 200 | 12.5 | 2.5 | 0.0001 | 999999 | ||||
| Working voltage | DC24-42 / (M-Bus interface) DC6-15v (RS-485 interface) |
| Working current | ≤20mA |
| Quiescent current | ≤1.3mA |
| Transmission distance | 1200M |
| Communication transmission rate | 1200bps-9600bps |
| Communication protocol | DL / T645 protocol CJT188 protocol Modbus Protocol |
| Work environment | Temperature 0 ℃ - + 60 ℃ humidity ≤ 95% RH |
| Battery | above 8 years |
