Single jet LORAWAN water meter
Single jet LORAWAN water meters are advanced devices designed to measure water consumption in real-time while leveraging the LORAWAN (Long Range Wide Area Network) protocol for efficient data transmission. These meters are particularly beneficial for urban water management, smart city initiatives, and residential applications.

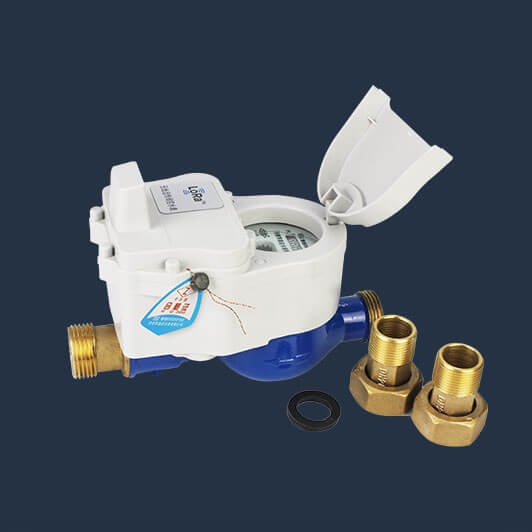

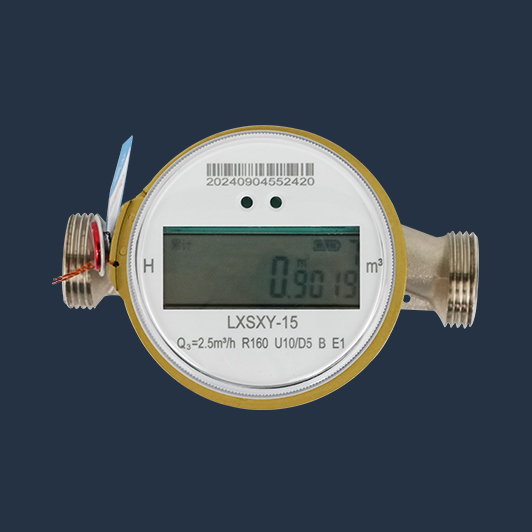

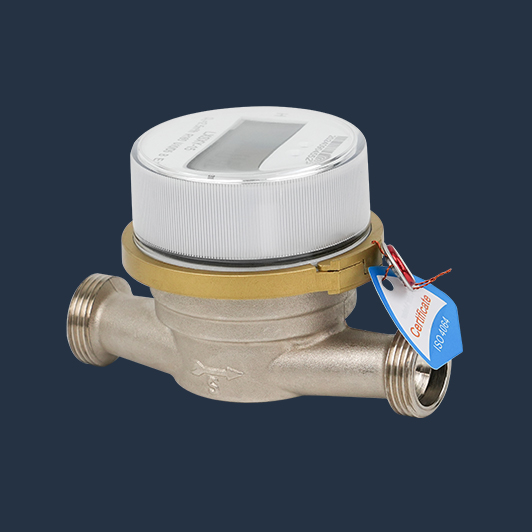

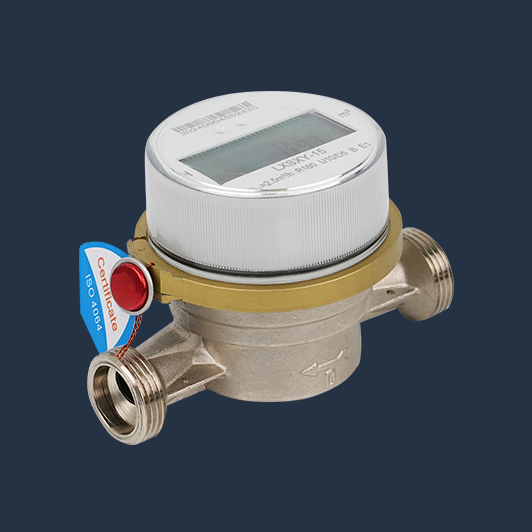

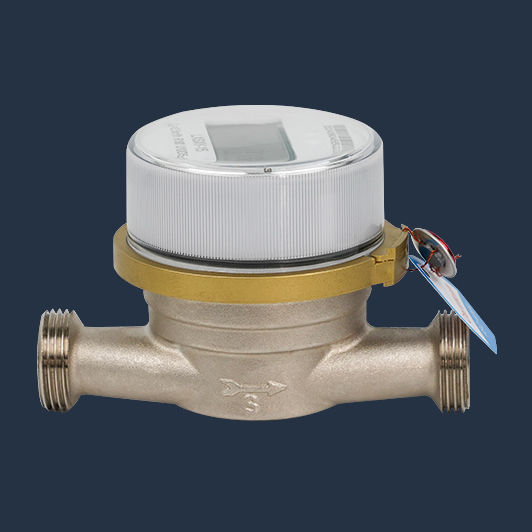

LXSXY single jet LoRaWAN water meter
- Size:DN15-DN20.
- Digital type.
- Max work pressure:PN16.
- Protocol: LORAWAN
- Battery: 6-8 years.
- Pressure loss:≤0.063Mpa
- Water temperature:T30
- Standards:ISO4064.
- Working mode: Class A
- Body:Brass with valve/without valve.
- Software:free for clients.
- Frequency: 433 MHz 470 MHz 868MHz 915MHz 923 MHz

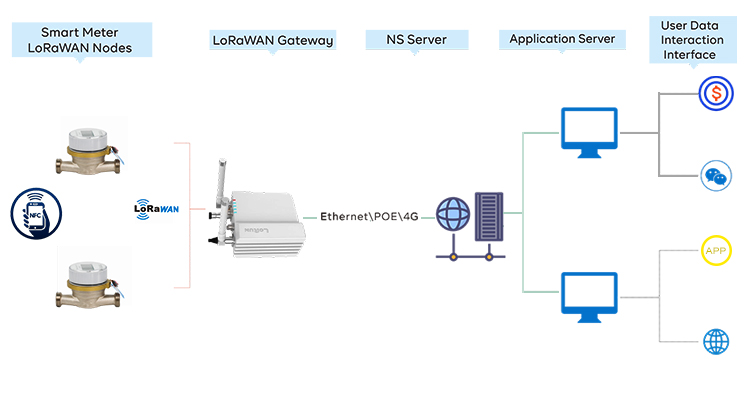

- Composition:LoRaWAN water meter,Gateway,Network servrt.
Key Features
1.Remote Monitoring: Utilizing LORAWAN technology, these water meters enable remote data collection, enhancing operational efficiency.
2.Long Battery Life: LORAWAN's low power consumption allows the water meter to operate for 6-8 years on a single battery, making it cost-effective and low-maintenance.
3.Real-Time Data Access: Users can access consumption data in real time through a user-friendly interface, enabling better water management.
Applications
Single jet LORAWAN water meters are widely used in municipalities for smart water management, helping to optimize water usage and enhance sustainability efforts. They are also suitable for residential buildings.
Parameters
DN (mm) | Q3/Q1 | Q4 | Q3 | Q2 | Q1 | Mini reading | Max reading | |
M3/h | L/h | M3 | ||||||
15 | 160 | 3.1 | 2.5 | 25 | 15 | 0.00001 | 99999 | |
Dimension
Size | Specification mm | Nut thread | Joint thread | ||
L | W | H | |||
DN15 | 110 | 69 | 75 | G 3 / 4 B | R1 /2 |
