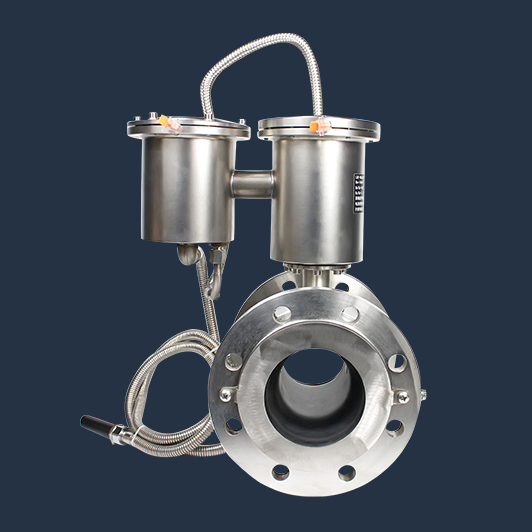

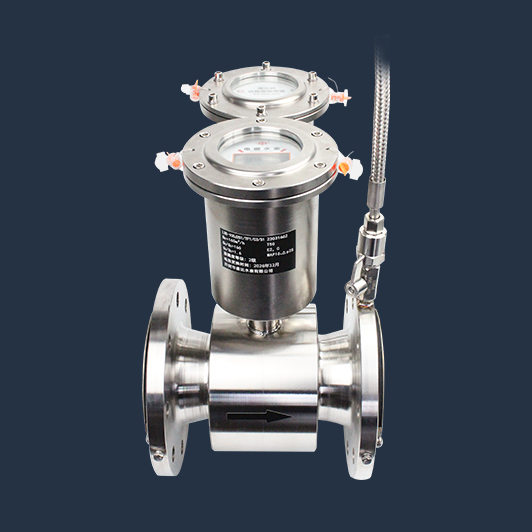

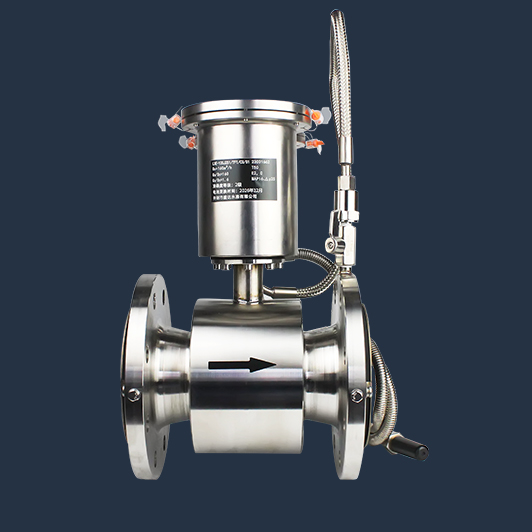

Electromagnetic Water Meter
Introduce
LXE series electromagnetic water meter is a kind of smart water meter specially designed for Trade Measurement of large water users and assessment of water consumption in residential areas.
Features
LXE series electromagnetic water meter has a high measuring range (R160-R400), especially suitable for occasions with large flow changes. It has the characteristics of starting flow rate 11mm / s, high accuracy and high sensitivity, so as to ensure that there will be no missing or missing records.
LXE series water meter has no movable mechanical parts inside, the pipe is straight through, and the phenomenon of mechanical meter sticking will not appear.
It can be equipped with pressure sensor to realize the simultaneous measurement of flow and pressure, and realize the function of pipe network leakage detection.
The higher measurement range (R160-R400) can ensure accurate measurement in the night with low water volume and the peak period with large water volume,, avoiding less recording of the flow, omission of recording, reducing losses, and increasing user benefits.
Advanced Sensors:
LXE series electromagnetic water meter adopts 304 stainless steel sensor, with anti electromagnetic interference, waterproof and anti-corrosion functions.
It adopts hygienic rubber substrate, which conforms to the national hygienic standard for rubber products (GB 4806.11-2016), and can be directly used in drinking water pipeline according to the requirements.
It adopts hygienic rubber substrate, which conforms to the national hygienic standard for rubber products (GB 4806.11-2016), and can be directly used in drinking water pipeline according to the requirements.
Smart Converter:
- IP68 protection grade, long time immersion normal work.
- Multi function display, with battery power display, fault diagnosis alarm.
- Instantaneous flow display, instantaneous flow rate display function.
- Pressure sensor can be selected to realize the function of flow and pressure display at the same time.
- Easy installation, no need to set parameters on site.
- Battery life 5 + 1 years
Remote Transmission Function:
The remote transmission function of LXE series electromagnetic water meter is digital direct reading. You can choose nb-iot wireless remote transmission scheme, or connect a GPRS wireless backpack(contact us for more information) with external protection grade of IP68 through RS485 communication to realize real-time monitoring of flow and pressure data.
Parameters
Qm=Minimum flow，Qt=Transitional flow，Qp=Permanent flow，Qo=Overload flow，R=Qp/Qm| DN (mm) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Inch | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| Qp/Qmin（flow range） | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Starting Flow（m3 /h） | 0.05 | 0.08 | 0.13 | 0.20 | 0.32 | 0.50 | 0.79 | 1.25 | 1.98 | 3.17 |
| Qmin（m3 /h） | 0.06 | 0.10 | 0.16 | 0.25 | 0.40 | 0.63 | 1.00 | 1.58 | 2.50 | 4.00 |
| Qt（m3 /h） | 0.10 | 0.16 | 0.25 | 0.40 | 0.64 | 1.00 | 1.60 | 2.52 | 4.00 | 6.40 |
| Qp（m3 /h） | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 |
| Qs（m3 /h） | 31.25 | 50.00 | 78.75 | 125 | 200 | 312 | 500 | 787 | 1250 | 2000 |
| 0.35（Qt+Qp） | 8.8 | 14.1 | 22.1 | 35.1 | 56.2 | 87.9 | 140 | 221 | 351.4 | 562.2 |
| 0.70（Qt+Qp） | 17.6 | 28.1 | 44.3 | 70.3 | 115.4 | 175.7 | 281.1 | 442.8 | 702.8 | 1124.5 |
